DISPLAY

In this section we'll see in details the differents options within the 'Display' sub-menu.

Note: The display menu allows the user to change some visual aspects of the app, these changes will be permanent only if the user is registered.

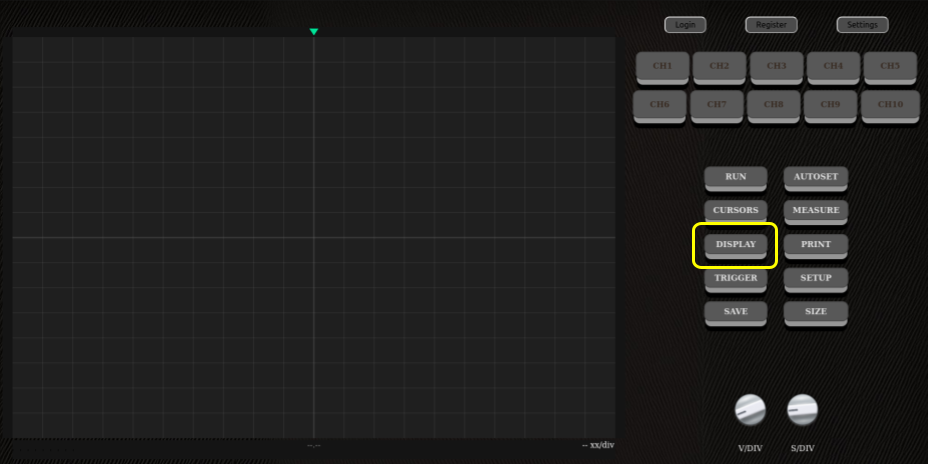

Position of the display button on the oscilloscope's main screen.
Position of the 'Display' button on the oscilloscope's main screen.

Zooming

It is possible at any moment while the oscilloscope is running to zoom on part of the screen.

To do so, simply click and drag your mouse on the area of the screen you want to zoom on (See figure below).

Zooming on part of the screen.

Unzoom

There are two ways to unzoom the screen :

  • - Via the sub-menu display, click on the 'Unzoom' button.
  • - Press "Shift + X" to cancel the zoom.

If, for whatever reason, the "Shift+X" shortcut does not work, the unzoon button should be able to resolve the problem.

Grid display

This option will allow you to choose wether or not to display the background grid of the screen.

Note: This preference will not be persistent for all sessions.

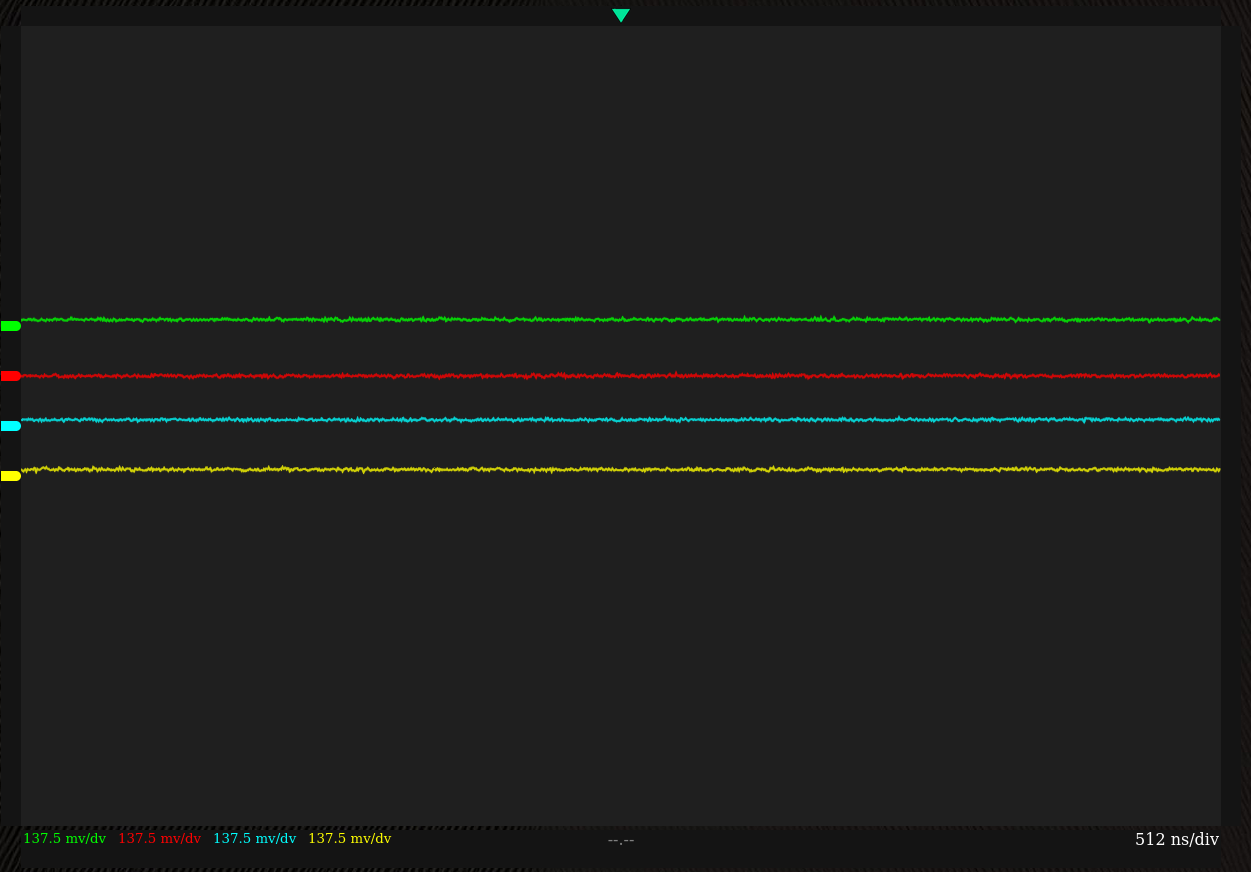

Oscilloscope screen without any grid.
Oscilloscope screen without any grid.

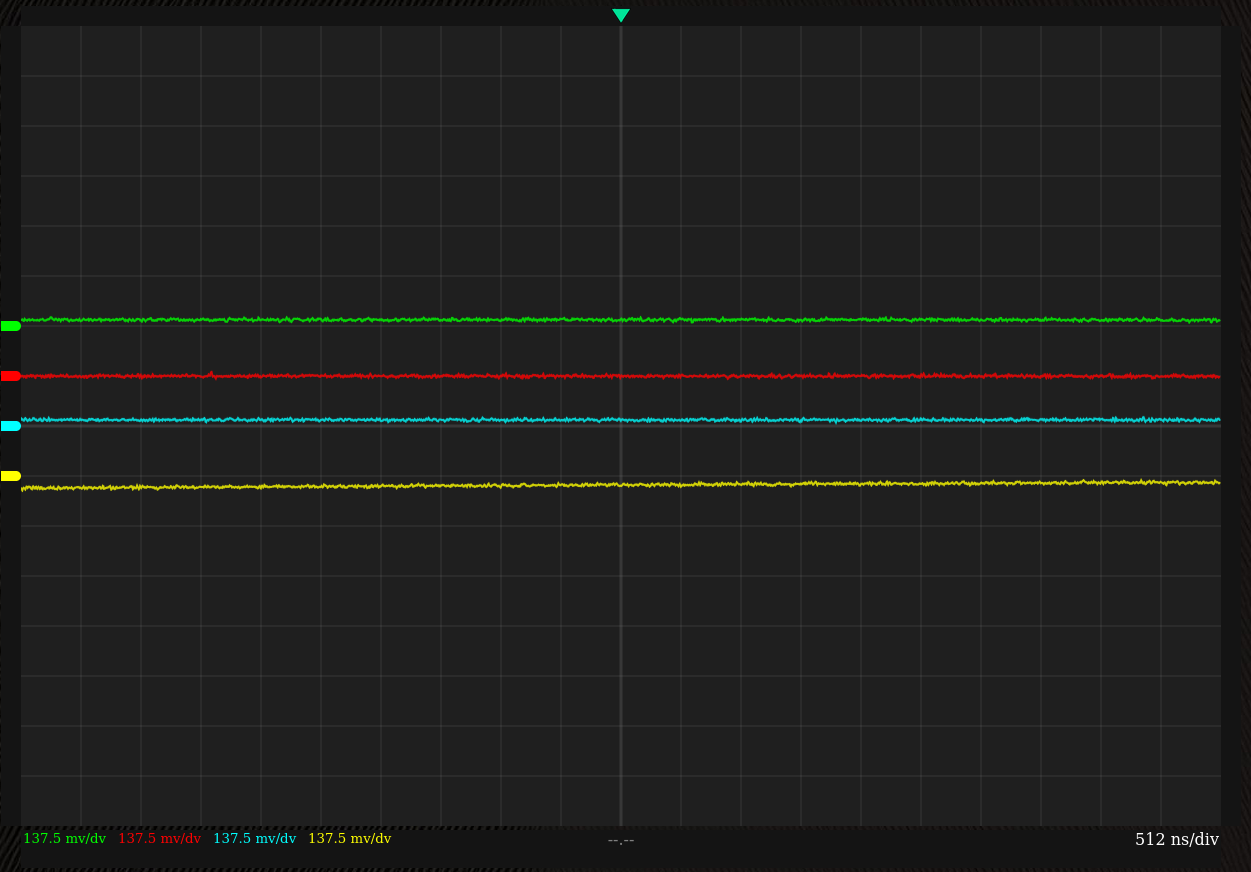

Default oscilloscope screen with grid.
Default oscilloscope screen with grid.

Keep in mind that if you download the current screen as an image using the SAVE or PRINT options, the grid will not be there if it has been hidden by the user.

What you see on screen is what will be downloaded.

Theme

The 'theme' option allows the user to choose between the light mode and the dark mode.

This preference will be saved for all sessions if the user changing the parameter is currently logged-in.

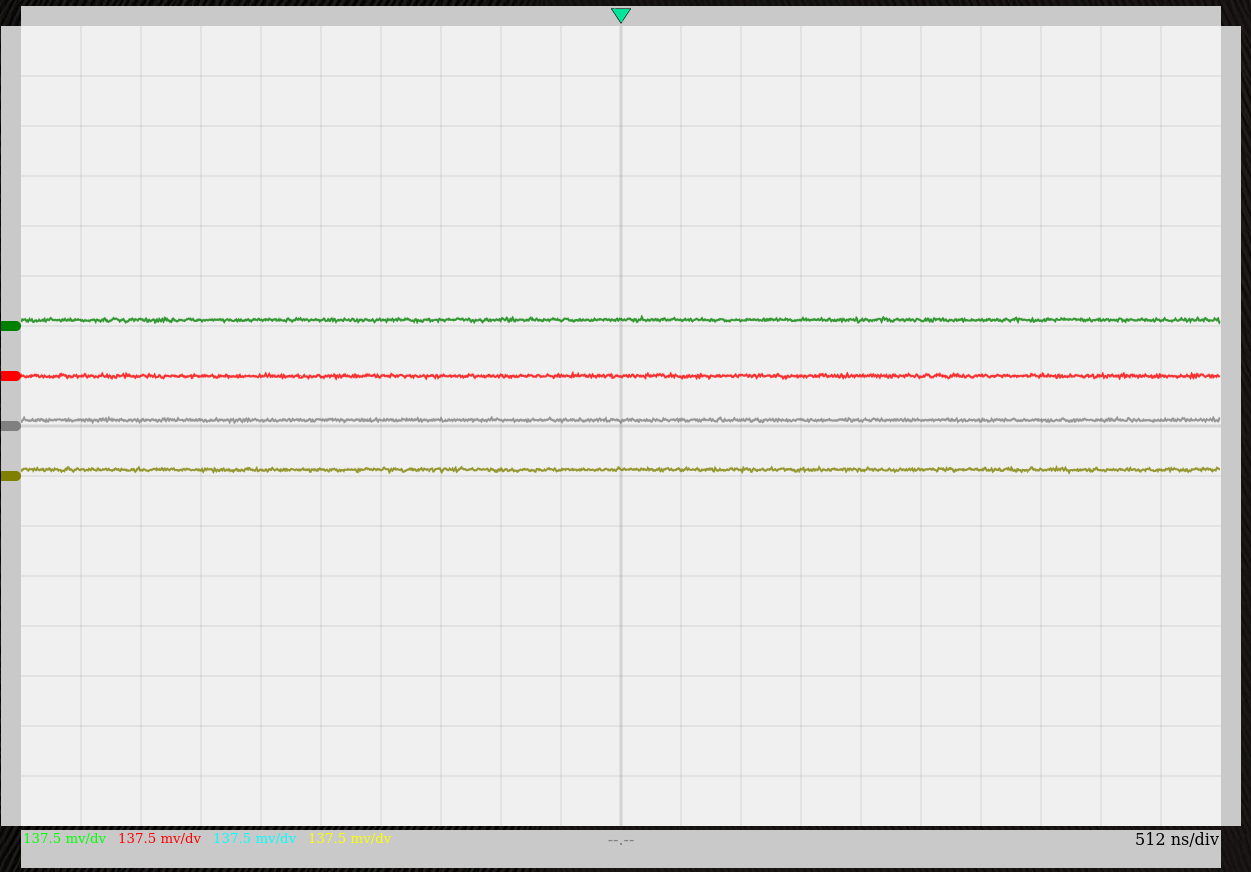

Oscilloscope screen in light mode
Oscilloscope screen in light mode.

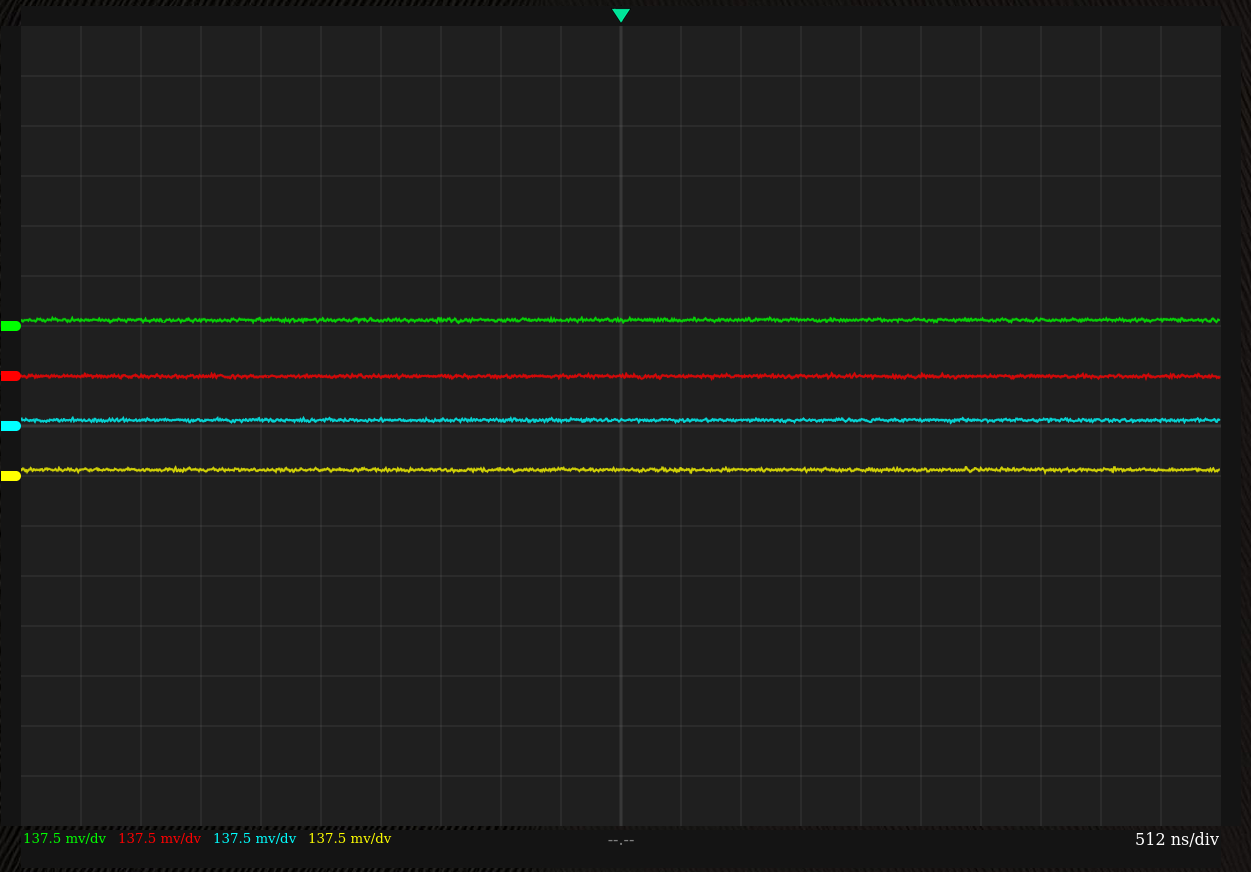

Oscilloscope screen in dark mode.
Oscilloscope screen in dark mode.

Changing the theme of the oscilloscope will also change the color of each channel.

Since we need high-contrast against the background to see the signals, the colorsets for the light & dark mode are not the same.

It is however possible for the user to select what color is associated with each channel for both light & dark mode using the SETUP menu.
